[电机控制] 多种保护功能的正弦24V/2A BLDC驱动参考设计包括BOM及层图
2018-9-19 09:12:43  484 BLDC 驱动
分享
描述

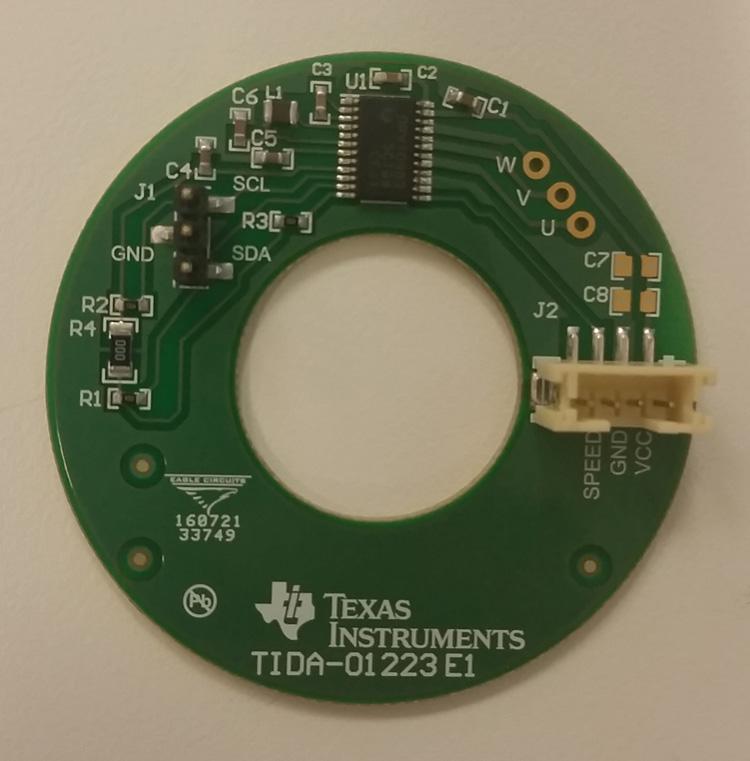

            This single layer reference design is for pedestal fan and other similar appliances and has board size of 2-inch diameter and an integrated controller that reduces the component count. In addition, sensorless control eliminates the need for hall sensors and has multiple protection features such as  (...)





主要特色

  • Nominal voltage: 24 V, with 3 A peak phase current
  • Single Layer Board
  • Compact size: Diameter of 2 inch
  • Protections: Over Current Protection, Motor Lock detect, Voltage Surge, Over Temperature Protection, Under Voltage Lock Out
  • TI's proprietary sensorless sinusoidal drive for optimum efficiency and low  (...)

1
Schematic/Block Diagram.pdf
190.02 KB, 下载次数: 13
物料清单.pdf
80.82 KB, 下载次数: 4
层图(或 PCB 布局).pdf
440.61 KB, 下载次数: 7
组装图.pdf
98.19 KB, 下载次数: 3
CAD 文件.zip
410.21 KB, 下载次数: 3
光绘文件.zip
324.66 KB, 下载次数: 5
